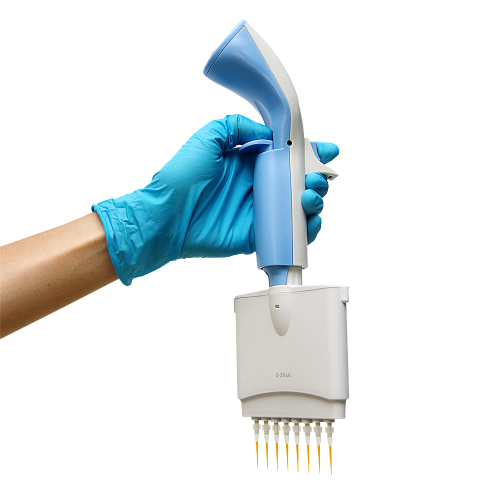

BluePette
Single and Multichannel Electronic Pipettes
BluePette electronic pipette series features an ergonomic and force-saving design, protects users from the risk of strain and Repetitive Stress Injury (RSI) when conducting various liquid handling tasks. Its efficient and friendly design greatly improves pipetting accuracy and performance. To meet different application needs, the BluePette comes in a wide range of product offerings.
Features and Benefits
Automatic Switch-On Calibration
for high accuracy and precision
Unique Force-Saving Design
to reduce stress and fatigue from repetitive pipetting
360。 Revolving Collar
for greatest positioning comfort
9 Memory Settings
to save protocol set-up time
User-Friendly Interface
and easy-to-operate buttons
High Capacity Lithium Battery
for high stamina continuous use
5 Speeds for Aspiration and Dispensing
depending on liquid viscositySpecifications
| Model | Description | Volume Range | Increment | Accuracy Rel. % (±) | Precision Range Rel. CV % (≤) |
|---|---|---|---|---|---|
| B20-1 | 1-Channel BluePette Electronic Pipette | 2 - 20 μl | 0.1 μl | 1 - 4 | 0.4 - 2.5 |
| B200-1 | 1-Channel BluePette Electronic Pipette | 10 - 200 μl | 1 μl | 0.6 - 2.5 | 0.15 - 1 |
| B1000-1 | 1-Channel BluePette Electronic Pipette | 100 - 1000 μl | 1 μl | 0.5 - 2.5 | 0.15 - 0.6 |
| B20-8 | 8-Channel BluePette Electronic Pipette | 2 - 20 μl | 0.1 μl | 1 - 4 | 0.5 - 2.5 |
| B200-8 | 8-Channel BluePette Electronic Pipette | 10 - 200 μl | 1 μl | 0.6 - 3 | 0.15 - 1 |
Ordering Information
- B-BATTERY
- High-Capacity Lithium Battery
- B-CHARGER
- Standard AC-DC Adaptor and Optional Charger
- B-STAND-3
- Stand for 3 Units
FAQ
-
1 How do I maintain the accuracy of BluePette's last dispense in Multiple Dispense (MD) mode?
To provide high accuracy to your pipetting, please select Reverse Pipetting in System Mode (SYS) before performing Multiple Dispensing (MD).
-
2 How often should I calibrate BluePette?
BluePette is equipped with an auto-calibration feature, which is performed every time it is turned on. We recommend you to send BluePette back to our authorized distributors for calibration every 6 months, or after 100,000 pipetting cycles.
-
3 When should I change the batteries of BluePette?
BluePette will emit a beeping sound when the battery level is low. Please stop your pipetting as soon as possible and recharge BluePette to avoid any inaccuracy that might be caused by insufficient battery levels.
-
4 After the battery is inserted into the battery compartment and the battery cover is closed, the LCD display remains blank. What should I do?
The LCD display should turn on automatically when users insert the battery into the battery compartment and close the cover. However, the battery is sometimes shaken during insertion, making the battery's metallic contacts touch BluePette's battery contacts twice. In this situation, the LCD display will remain blank. Please press the "RESET" button or reinsert the battery to activate the LCD display.
-
5 What's the benefit of the Blow-out function?
To prevent droplet retention on the tip's orifice, we highly recommend selecting the Blow-out setting in System (SYS) mode for all your pipetting. The Blow-out setting will purge an additional 10 μl of air in addition to your selected pipetting volume.
-
6 How can I autoclave the lower part?
Please refer to the BluePette Operation Manual to disassemble the lower part. The whole lower part can be autoclaved as one piece. Please wait 3-4 hours for it to air dry before reassembly and calibration. Since there is no spring inside BluePette, autoclaving will not affect the accuracy and precision of BluePette.
-
7 Can I use regular grease to lubricate BluePette?
We recommend using the specialized lubricant sold by our authorized distributors. The lubricant used in BluePette is an airtight, high-temperature-resistant, chemical-resistant material. It can undergo autoclaving without losing its accuracy.
-
8 Why is BluePette more accurate and precise?
The core engine of BluePette is a patented, high-precision step motor which enables BluePette to dispense with high accuracy and precision.
Small step motors which control the rotation into very small angles are widely used in many high precision applications, such as digital cameras, scanners and laser printers.
With the patented auto-monitoring feature of BluePette's step motor, the BluePette not only performs accurate and precise dispensing, but also can monitor the movement of the step motor. -
9 How is BluePette ergonomically designed?
Some ergonomic designs implemented in the BluePette are listed below:
-
10 How many pipetting cycles can be performed by a fully-charged BluePette battery?
About 2,000 cycles.
-
11 What's the life span of the lithium battery?
Users can recharge the battery for about 500 times.
-
12 What safety certifications does BluePette have?
BluePette is CE- and UL-certified, which guarantees the stability and safety of products.
-
13 How does BluePette comply with GLP?
For Good Laboratory Practice (GLP) labs, all equipment operations should be traceable. BluePette automatically records pipetting cycles. This function is designed for GLP labs and service engineers. Since this function is not frequently used by regular users, it's stored in Service Mode. To access this data, please contact our authorized distributors.
-
14 What kind of quality assurance tests are done with BluePette?
Some of the quality assurance tests done with BluePette are listed below.
Step Motor life test
ring life test
Buttons life test
Tip Ejector life test
Tip Fitting life test
Temperature Cycling test
Storage Temperature test
Vibration test
Drop test
Autoclave test
Lower Part Connection test
-
15 What kind of plastic materials are used in the housing of BluePette?
The upper part of BluePette is made of ABS. The lower part is made of PP, except for the tip fitting, which is made of PVDF. Both PP and PVDF plastics are high-temperature-resistant, chemical-resistant materials. The piston is made of stainless steel.
-
16 What kind of plastic materials are used in the housing of BluePette?
The upper part of BluePette is made of ABS. The lower part is made of PP, except for the tip fitting, which is made of PVDF. Both PP and PVDF plastics are high-temperature-resistant, chemical-resistant materials. The piston is made of stainless steel.
-
17 What's the biggest operational difference between manual pipettes and BluePette electronic pipettes?
To achieve good results, manual pipetting requires experience, especially for small volumes. With BluePette, users with or without experience can achieve consistently good results
