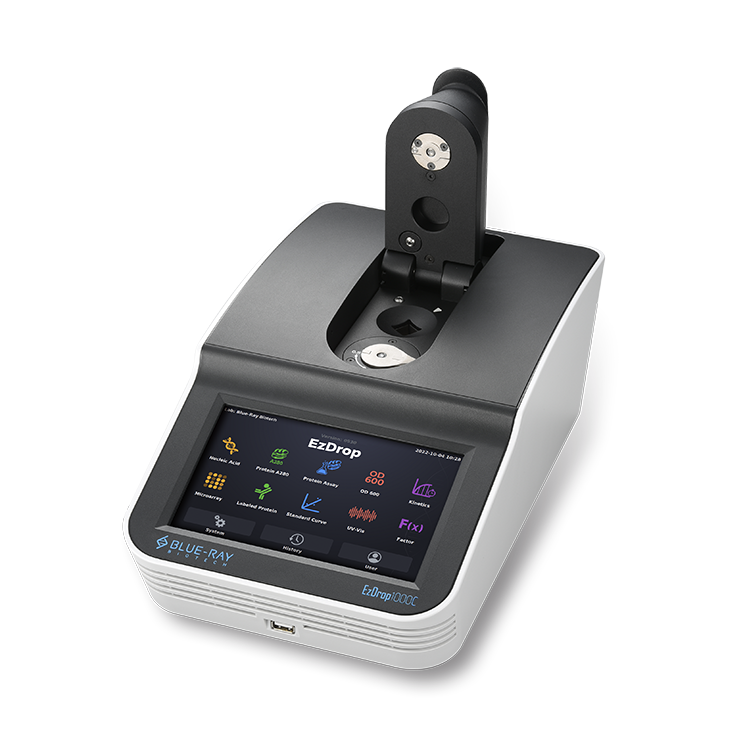

EzDrop 1000 超微量分光光度计

何止于快

EzDrop 1000 超微量分光光度计可在三秒内快速完成样品量测,其具备全波长范围190-1000 nm检测功能,应用广泛。样品载台表面采奈米级疏水涂层设计,确保高精确量测结果。机台内建直觉触控屏幕,让所有操作步骤简单快速,弹指之间轻松完成量测工作。

single-product-01

特色功能

Fast measurement in 3 seconds.

三秒内快速完成样品量测

The CV value of absorbance is < 1%

量测偏差小于1%,确保高再现性

面面俱到的使用体验

● 内建直观图像式介面屏幕,操作简单易用;无须连接额外计算机设备,节省实验室空间
● 内建多种测量方法,一键轻松完成核酸、蛋白质、细胞及其他种类样品量测
● 自动测量功能提升运作速度与便利性
● 贴心的辅助灯设计,补足使用环境光不足,确保滴加样品时的操作质量

超高质量保证

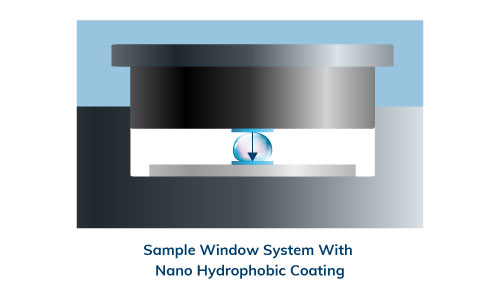

● 样品载台表面采奈米级疏水涂层设计,避免样品柱塌陷问题
● 可更换的样品载台设计,大幅降低了残留污染的可能性
● 检测臂轴缓冲设计降低仪器开关盖时造成的冲击,确实降低实验误差

产品规格

Optics Information

  • Sample Volume
  • 1 µL minimum volume
  • Sample Number
  • 1
  • Pathlength
  • 0.5 mm / 0.05 mm
  • Light Source
  • Pulsed Xenon flash lamp
  • Detector Type
  • 2048 element CMOS
  • Wavelength Range
  • 190 - 1000 nm
  • Bandwidth
  • 1.3 nm
  • Wavelength Accuracy
  • 1.0 nm
  • Spectral Resolution
  • 1.5 nm (FWHM at Hg 253.7 nm)
  • Absorbance Precision (raw)
  • 0.001 A (0.5 mm)
  • Absorbance Precision
  • 0.02 A (1 cm equivalent)
  • Absorbance Accuracy
  • 3.0% at 0.97 A at 320 nm
  • Absorbance Range (1 cm equivalent)
  • 0 (0.02) - 300 A
  • Detection Range
  • dsDNA: 2 - 15000 ng/µL; BSA: 0.10 - 400 mg/mL
  • Sample Surface Material of Construction (Lower and Upper)
  • Stainless steel and quartz window with hydrophobic treatment
  • Measurement Time
  • < 3 sec

Software

  • Operating System
  • Custom Linux based OS
  • Registered User Folder No.
  • 50 sets
  • User Folder Password Protection
  • Yes

General

  • Display
  • 7” color LCD with capacitive touch panel
  • Data Port
  • 1 USB Type-A front port for USB flash drive
  • Footprint Dimensions (W x D x H)
  • 206 x 166 x 333 mm
  • Weight
  • < 3.5 kg (< 7.8 lb)
  • Glove Compatibility
  • All common lab gloves
  • Internal Storage
  • 32 GB flash memory
  • Power Adapter
  • Input: AC 100-240 V, 50/60 Hz; Output: DC 24 V, 2.08 A
  • Certifications
  • CE, RoHS

* Specifications are subject to change without prior notice.

订购信息

  • BRED-1000
  • EzDrop 1000 Micro-Volume Spectrophotometer
