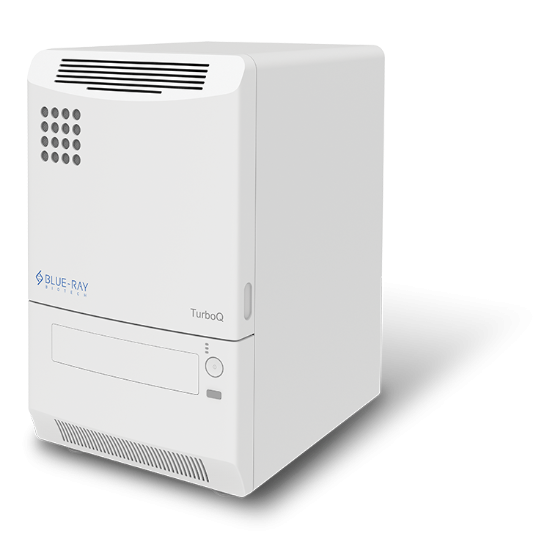

TurboQ 实时定量基因扩增仪

专为多重PCR和常规实时定量PCR检测设计

TurboQ 实时定量基因扩增仪,专为多重PCR和常规实时定量PCR检测设计,同一样本最多可同时检测四种核酸序列。产品承继蓝光生技十多年的PCR开发核心技术能力,为协助科研及临床诊断实验室人员提供高效精准的PCR检测。

single-product-01

特色功能

4-optical-channels

四个荧光通道

同一个样本最多可同时检测四种核酸序列
ccd-based-detection-system

CCD检测系统

可以同时检测整个96孔盘,以消除反应时间差异
motorized-plate-carrier-tray

电动式96孔盘托盘

一键式孔板进/出控制,可进一步实现自动化
0.25°c-block-temperature-control-accuracy

+/- 0.25°C的模块温度控制精度

确保实验条件稳定性并消除变异性
software-with-complete-analysis-functions

具有完整分析功能的软件

具备包括绝对定量、相对定量、等位基因鉴别,和解链曲线,无需购买额外其他分析模块

产品规格

Sample Block

  • Sample Block
  • Fixed 96-well, compatible with regular profile 0.2 ml PCR tube, strip, non-skirted and semi-skirted 96-well plate
  • Sample Volume
  • 10 - 100 µl
  • Plate Loading
  • Motorized plate carrier tray

Block Temperature

  • Block Temperature Range
  • 25 - 99 °C
  • Peak Block Ramp Rate
  • 2.5 °C/sec
  • Temperature Accuracy
  • ± 0.25 °C (35 °C – 95 °C) of set point/ display temperature / Measured at 3 minutes after clock start.
  • Temperature Uniformity Across Block
  • ± 0.5 °C (30 seconds after clock start)

Gradient Temperature

  • Gradient Temperature Range
  • 60 - 99 °C
  • Gradient Temperature Difference
  • Max. span 25 °C

Heater Lid

  • Heating Lid
  • 105°C

Optics

  • Excitation Source
  • Tungsten-halogen lamp
  • Detection Module
  • CCD camera
  • Detection Channel
  • 4 channels (Ch1: FAM, SYBR Green, Ch2: HEX, VIC, TET, Ch3: ROX, Texas Red, Ch4:Cy5)

Environment

  • Operating Temperature
  • 15 – 30 °C
  • Operating Humidity
  • RH: 85% or less
  • Storage Temperature
  • -10 - 60 °C

General

  • PC Operation System
  • Windows 7 or higher
  • Footprint Dimensions (H x W x D)
  • 567 mm x 354 mm x 455 mm
  • Weight
  • 35 kg
  • Power Supply
  • 110/230 V, frequency 50/60 Hz, 1500W
  • Fuse
  • 1 x fuse, 10A for 110VAC power / 5A for 220VAC power

* Specifications are subject to change without prior notice.
