TurboCycler 2

直观 快速 准确

TurboCycler 2梯度PCR仪专为提升您的PCR实验效率及精确度设计。它配备7英吋触控屏幕及直观友好的用户介面,操作简单快捷。TurboCycler 2卓越的效能及精确梯度控温能力,大幅提升实验处理效率。此外,用户可通过手机App,随时监控仪器工作状态,为您带来便捷方便的操控体验!

single-product-01

特色功能

feature-1

Easy-to-operate heated lid design, compatible with most of the PCR vessels on the market

feature-2

Power failure recovery keeps the experiment safe

feature-3

USB port support for protocol transfer

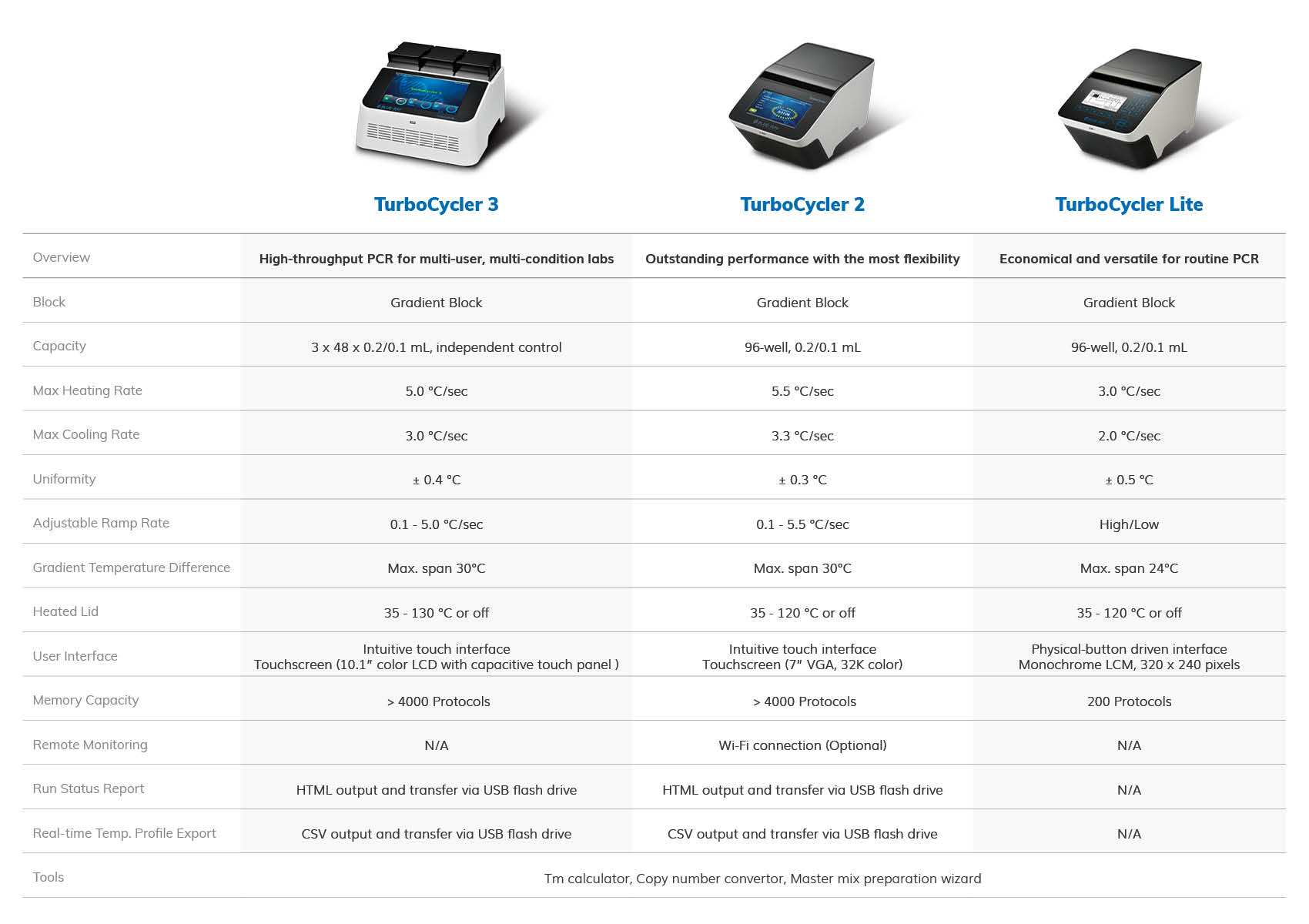

产品规格

样品模块

  • 样品模块
  • 相容常规或 0.1ml 低位 PCR 矮管、联排管,无裙边、半裙边和全裙边的 96 孔板
  • 样品体积
  • 10 - 100 µl

模块温度

  • 模块温度范围
  • 4.0 - 99.9 °C
  • 最大升温速率
  • 5.5 °C/sec
  • 最大降温速率
  • 3.3 °C/sec
  • 精确度
  • +/- 0.3 °C
  • 精确度
  • +/- 0.3 °C
  • 升降温速率可调
  • 是,低/高两档
  • 缓速升降温控制
  • 通过循环间温度的增加或减少控制

梯度温度

  • 梯度方向
  • 模块横向
  • 梯度温度范围
  • 30 - 99 °C
  • 最大梯度温度
  • 最大 24.9 °C

热盖

  • 温度设置范围
  • 35 - 120 °C 或关闭
  • 温度精度
  • +/- 1.0 °C

软件

  • 程序输出
  • 可通过U盘保存或转移到另外一台TurboCycler 2上
  • 储存数量
  • 500 个
  • 用户数量
  • 最多100个
  • 用户文件夹密码保护
  • 运行状态报告
  • 有,通过U盘输出,格式为HTML
  • 实时温度文件输出
  • 有,通过U盘输出,格式为CSV
  • 工具
  • Tm计算器,拷贝数计算器,Master mix配制计算器

常规参数

  • 显示屏
  • 7 英寸电容式触摸屏
  • 数据导出
  • 1 个 前端USB界面
  • 断电记忆
  • 远程监控(Wi-Fi)
  • 远程监控(Wi-Fi)
  • 尺寸(H x W x D)
  • 225 mm x 245 mm x 415 mm
  • 重量
  • 9.5 kg
  • 电源
  • AC 100-240V, 50/60 Hz, 750W

*参数如有变更,恕不另行通知。

订购信息

  • TCST-9612
  • Gradient TurboCycler 2 with 96-well Sample Block (110V)
  • TCST-9622
  • Gradient TurboCycler 2 with 96-well Sample Block (220V)
  • TCLT-a001
  • Wi-Fi Upgrade Module
  • TCLT-a002
  • 5.2 mm Compression Mat x 10 pcs
  • TCLT-a003
  • 1.0 mm Compression Mat x 10 pcs

资源下载

常见问题

  • 1 Compressor Mat and Low-profile PCR vessel

    The low-profile PCR vessels is design to reduce the overhead space above the reaction solution inside the vessel.

    During the thermal cycling, the water in the solution evaporate and fill up the overhead space, causing the concentration increase of the reacting solution.

    The smaller overhead space, the fewer water evaporated, thus reduce the concentration change of the solution when heated. This will be helpful especially when you are doing low volume reaction.

    In general, the low-profile PCR vessels are 5 mm shorter in height than the regular PCR vessels.

    In order to maintain the pressure from the cycler lid to the vessels, please applied the compressor mat for the experiment and set the lid to heat to 120°C.

  • 2 What is the function of lid? What is their effect on the evaporation? Does our lid temperature cycle with experiments? Do the competitive units do? At 4 °C step what temperature is lid?

    There are three different setting of temperature for the lid:

    - The propose of lid heating is to avoid severe condensation in PCR tube during reaction.
    - Evaporation is related to the pool sealing of the PCR vessels. However, the proper pressure from the lid to the sealed vessels will help to maintain the integrity of the seal, thus help to prevent evaporation.
    - The Lid heating doesn’t do the cycling. No, the competitive units doesn’t do the cycling as well.
    - While the block start to goes down under 30°C, the lid heating is stopped. The temperature of lid will gradually decrease. The competitive unit does it as well.

  • 3 Condensation V.S. Evaporation

    - Condensation inside the tube is mainly caused from the tube stayed at lower temperature (e.g., 4°C) after the run for a long period of time. It occurs to all the cycler. This phenomenon is similar with putting a bottle of water in refrigerator and you will see the condensation in the bottle.

    - Evaporation means that the evpor of the contents in the tube is released to the envirament. It is definitely associate with the integrity of the vessel sealing.

    - If the seal or the vessel cannot withstand the temperature cycling during the run, they may have serious deforming. It is so severe that the deforming tear off the seal. This is caused from the quality issue of plate and seal, because these consumables need to stay intact at cycler.

  • 4 When I start a run, the block hold for several minutes then start to heat. Why?

    The lid of the cycler need to be heated to proper temperature first then the block start to heat.

    According to the setting of the lid temperature, the room temperature and the usage of the compression mat, it can take 2-8 minutes for the lid the finish the heating.

  • 5 When the power comes back after a power failure, does the TurboCycler start running again?

    For the power-failure-during-a-run situation, when the power come back to the unit, the unit will start from what it was running (without touch the power switch) and finish the protocol.

    Also, if the power failure for long time, the unit will still start (after the power back on) as well but it will take few seconds or minute for lid module heat up.

    After the lid module reach to the setting temperature, the protocol will be continued. This design will protect the PCR experiment.

    This function named “Auto-restart after power outage”

  • 6 Can TurboCycler run overnight?

    Yes! But we would not recommend you do that really often.

    Running your cycler overnight at 4°C potentially reduce the life cycle of the instrument. In most application, 16°C instead of 4°C for overnight storage can well-protect your DNA sample.

  • 7 Whether the ramping rate of TurboCycler is adjustable?

    Yes! There are two options of the ramping rate for the TurboCycler, Hi and Low.

    Hi for the full ramping power that will speed up your experiment and Lo for the 50% of the ramping power that can mimic the running condition on the other older generation cyclers.

  • 8 What’s the temperature range of TurboCycler lid?

    There are three different setting of temperature for the lid:

    120°C (for use with low-profile vessel + compression mat), with extra 3 min pre-heat
    105°C
    Heater off

  • 9 Is the block of the TurboCycler interchangeable?

    There is only one block configuration for the TurboCycler so far, so it is not interchangeable.

    However, if there is any service need to be done with the block, it can be easily disassembled and sent back to us for service.
